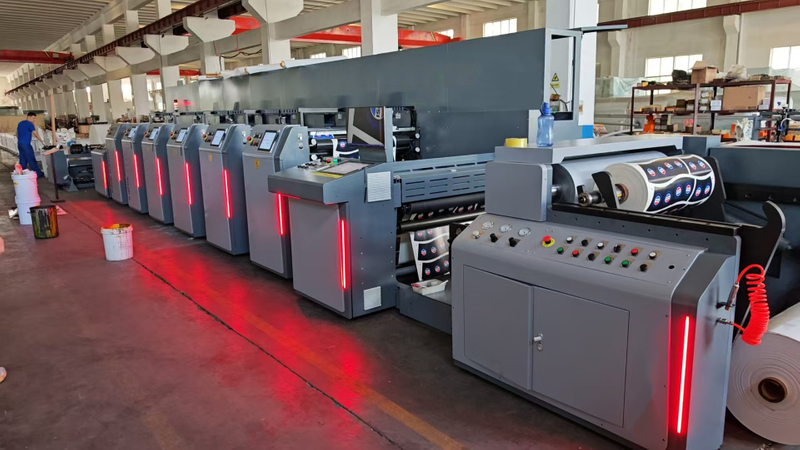

PICTURE FOR REFERENCE ONLY
DHF20-1000-6 FLEXO PRESS
BRIFE INTRODUCTION
Substrate:
Printing section: 6
Max. paper width：1020mm
Max. printing width：1000mm
Printing repeat：300mm – 1000mm
Register Tolerance: ±0.10mm
Max. printing speed：180m/min
Machine running speed will be impacted by but not limited to following factors:
Plate cylinder diameter
Character of Substrate
Character of ink and additives
Printing Quality Request
Flexo plate and tape
Machine color: DongHang standard
Plate thickness + tape thickness ：1.7mm+0.38mm
Drying system: Electric heating (hot air) + IR
Machine layout: Operator faces to the machine, unwinder in left hand direction
Machine size: Pls note the attached drawing
Power supply and compressed air
Power: 380V 3PH 50HZ
Compressed air:0.6MPa
Compressed air Consumption :2 m3/min
Environment requirements for workshop
Relative humidity: 30 -80% (at 20°C).
Temperature: 15°C – 35°C
Altitude: Less than 2000 m
Ground pad to fix and the thickness of the floor should be no less than 20cm
DONGHANG FEATURES

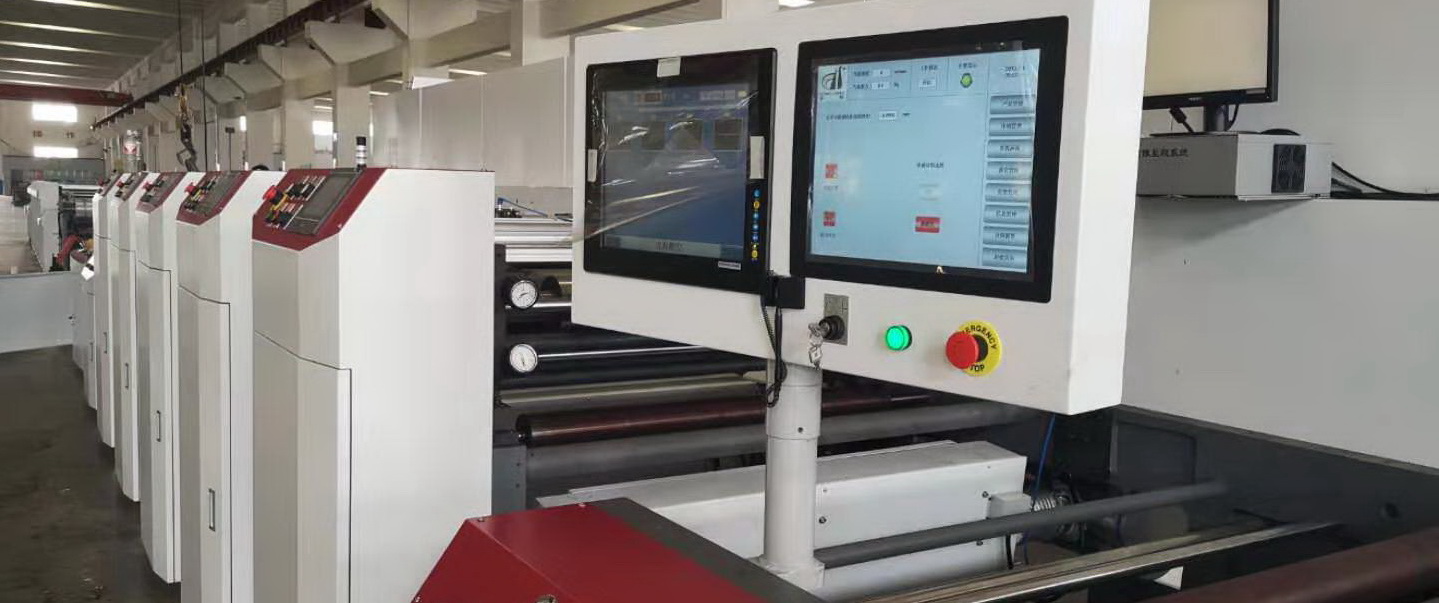

SMART OPERATION
Job save/recall, save necessary data of job setup, make job repeat more easily
If you do not follow the procedure, the machine will alarm automatically
On-line monitoring of the whole machine status, real-time monitoring
Lack of air pressure, auto alarm
Each printing section was specified with control panel
Camera based register-Camera based registration system
Pre-register
Remote control system-Long distance diagnosis
Auxiliary diagnostic system
Fault records are stored in the system, facilitate statistics on the frequency of failures and prevent them effectively
ACCESSORY DETAILS
Paper path roller was made of aluminum alloy, fixed in high precision bearing, processed with dynamic and static balance
All parts that need lubrication are equipped with lubrication holes (Lubricants provided by customers)
SURFACE TREATMENT
The machine has excellent surface treatment technology. All parts and covers are surface treated, such as cleaning, rust prevention and epoxy coating
ELECTRICAL CONTROL CABINET-SPECIAL DESIGN
The electrical cabinet is directly connected to the machine, save much more space
All electrical controls are installed in the electrical control cabinet, the main power supply is installed in a separate control cabinet
All cables are installed in the piping system to reduce the interfering signals
Attention: If the user's local safety regulations differ from those used by the manufacturer, the user needs to provide a full set of instructions and bear the costs of machine modification. Machine modify maybe delay the delivery time.
Max unwind diameter 1500mm
Clamp type without shaft, auto lock of clamp head
3’ convert to 6’
Auto tension control system, air brake system
Hydraulic roll shaft lift: used to load and unload the paper roll without the forklift.
Auto stop when paper broken
Paper splicing device
WEB GUIDE SYSTEM
Specified in front of the printing section
Equipped with pneumatic paper-holding device to splice the paper
Inspection: the edge
Adopts the photoelectric sensor for web guide transmission
Electronic web guide traction device. If there is any excursion in paper feeding, the system will have a constant and accurate adjustment.
Adopts closed-loop control system to accurately detect the deviation and correct it.
WEB CLEAN AND ANTI-STATIC UNIT
To guarantee the cleanness of substrates
First remove static, then clean the dust in vacuum and then remove static.
Vacuum is formed by high pressure fan, with the collaboration of dust removal brush, it is separated by the guide groove to effectively remove the printing material dust
CORONA SYSTEM
To increase ink adhesion to film side of the printing material
IN-FEED TENSION CONTROL
Use the pressure glue roller to clutch and feed paper and to ensure the tension
Tension roller is driven by servo motor, the tension is controlled by servo motor to ensure the precision registration
One servo motor
One servo driven
One high precision gearbox
PRINTING UNIT
Servo motors/ servo driven / high precision gearboxes
Flower type structure achieved the dual pressure independent adjustment and locking, avoid material waste caused by frequent pressure adjustment
The machine board is made of overall alloy and cast iron, which improves the stable performance and durability of the press machine
For every printing section: Impression cylinder is driven separately by one servo motor, plate cylinder and anilox roller share one servo through gear
Ink tank
Easy handle without tools
Laser engraving ceramic anilox roller
6 pieces high precision anilox rollers
The anilox roll will rotate to prevent the ink on its surface from drying and blocking holes on it.
PLATE CYLINDERS
Aluminum alloy material
6 pieces plate cylinders (Repeat length is decided by customer but confirmed by DongHang).
Toth sides of the cylinder was designed with shoulder metal structure
Air lock device can lock the cylinder directly without any tools
PRINTING AND SETTING
Newest registration technology – Camera based model registration
Automatic registration for printing stations (Paper running direction & operation direction)
Auto register for paper running direction can be controlled on both printing section and touch screen
Auto register for operation direction can be controlled on both printing section and touch screen
360°Auto-register function, to guarantee stable register during printing. The automatic registration controller can adjust the Phrase Position of the servo motor according to the detected error, realizing the quick registration and improving the operating quality and the extent of automation, so the machine greatly reduces the labor intensity and the attrition rate of raw materials. This operation is completed when the machine is in registration condition.
Operation direction’s registration can be realized by moving plate cylinder
Plate pressure & printing pressure area adjustment will be displayed on screen
PRE-REGISTER
Before running the machine, plate cylinder tries to find correct position by itself (position is calculated by machine computer). Lower down paper waste, achieve faster job setup.
DRYING SYSTEM
Hot Air and IR
Each of the printing units is equipped separately and adopts the high-power IR light tube
I.R short-wave heating and drying system and temperature is adjustable
Warm air and natural air-drying system including exhaust fan and blower with adjustable volume
Equipped with hot air fan to make sure the drying quality
Collect the waste gas and release it through the exhaust fan
IR power can be controlled separately and automatically according to the printing speed
Single printing section temperature control is available, better adapt to different printing materials and reduce the energy consumption of the whole machine
OUT-FEED TENSION CONTROL
Tension roller is driven by servo motor, the outfeed tension is controlled by servo motor to ensure the stable tension
Specified with pressure glue roller to clutch and feed and to guarantee the stable tension
1 servo motors
1 servo driven
1 high precision gearboxes
IMAGE INSPECTION SYSTEM
Image inspecting camera can take pictures synchronously for the printing materials
Preset the inspecting position horizontally and vertically
It can magnify and observe the image with a fixed position to guarantee the printing quality.
High-definition resolution camera
High-definition color image monitor-17” LCD monitor
One high speed paparazzi flashing light
Product can be magnified, and the dot can be seen clearly
REWIND UNIT
Surface driven winding type
Winding is controlled by motor, Independent motor drive, controlled by servo drive, constant tension control. Just set the tension value to control the paper tension. Automatic control, no manual intervention required.
Dance roller, air cylinder and sensor cooperate to control the tension
Rewinding unit diameter is 1500mm
Hydraulic roll shaft lift: mainly used to load and unload the paper roll without the forklift.
When the paper is broken or cracked, the machine will stop automatically
Auto stop when paper broken
One set paper impress roller
Winding meter counting pre-set, when the meter reaches the set value, auto alarm
PLATE MOUNTING MACHINE
It has a screen including the bilateral symmetrical split-screen display
It is used for the plate mounting to realize the purpose of multi-color overprinting
One set image segmentation device
TOOLS TOGETHER WITH THE MACHINE
One set of tools for routine maintenance. When needed the user needs to provide the necessary repair tools.
CONSUMABLES
Name of product | Unit | Quantity |
I.R. Lamp | pics | 4 |
Ink seals | pics | 12 |
Air tube connector | pics | 5 |
Air tube | meter | 10 |
Remark:The above mentioned spares maybe tiny adjusted by DongHang
MAIN ELECTRICAL PARTS SUPPLIERS
No | Name of product | Supplier |
1 | Web guide system | ST ITALY |
2 | Touch SCREEN | WEINVIEW |
3 | POWER SWITCH | MULL/PHOENIX/MEANWELL /SCHNEIDER |
4 | Control button | Schneider |
5 | Anilox roller | China |
6 | Circuit breaker | LG Korea |
7 | Circuit connector | LG Korea / Mull America |
8 | Auto Lubricating | BAOTENG |
9 | Photo-electricity sensor | Leuze or Turck Germany |
10 | Image inspection | Sichango |
11 | Servo motor | Baumueller / Lenze / Rexroth Germany |
DOCUMENTATION
Full sets of description, Includes installation operations and routine maintenance, electrical, pneumatic, and hydraulic diagrams. User must strictly follow the contents of these documents. The manufacturer is not responsible for any results If the user does not operate the device correctly according to the instructions. The user should notify the manufacturer immediately when the machine is abnormal, otherwise the user will bear the results by himself.
ONE YEAR WARRANTY
This warranty covers those defective parts which have been damaged under ordinary working conditions and by properly using the equipment; it does not cover damages deriving from an improper use of the equipment, a non-compliant use to the purpose of the machine and/or a carelessness of normal and required maintenance.
INSTALLATION AND TRAINING
Dong Hang provide 1 engineer to customer's side for installation (US$150 per day per person, customer supply the accommodation (food and hotel) and round way flight tickets and local transportation costs, quarantine and medical test cost in client’s country. Installation and training may cost 15 to 20 days.)
THE FOLLOWING CONFIGURATIONS AND SERVICE ARE NOT PROVIDED
Lifting device for anilox roller and plate cylinder
Anilox roller washing machine
Waste gas from drying system exhaust pipe
Air compressor, gas pipeline connected by air compressor and pneumatic device
Air compressor, containers, Compressed air treatment equipment and related accessories.
Power cables and wires input to the machine
Firefighting equipment
Any form of land construction
All kinds of oil
Thermal insulation and sound insulation
Solvent volatilization treatment and recovery
Others not listed
REMARK
DONGHANG company is qualified to make the necessary design changes without affecting the performance of the machine
